Rolled Products Business
High Quality Anodized Aluminum Alloy Sheets (A Series)
The material is suitable for small lot production, such as prototyping and development work, or for production with a limited lead time.
Characteristics
Linear marks after anodizing treatment reduces, which leads to significant increases in the yield.
The material has a fine surface quality for stable color tone without a yellowish tint.
Smut produced by alkali etching and chemical polishing is reduced. * Smut: Substances produced in the etching process insoluble to water.
Applications

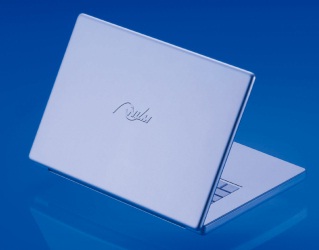

Electrical and electronics - Enclosure case for digital cameras, laptop PCs, cell phones, etc., products to which requirements on the design and decoration are high.
Properties
Material Properties
| Grade | Treatment | Tensile Strength （N/㎟） | Yield Stress （N/㎟） | Elongation （％） | Eriksen Value （㎜） | Limiting Drawing Ratio | Electric Conductivity （%IACS） | Thermal Conductivity (W/m･℃） | Surface Treated Grade | |
|---|---|---|---|---|---|---|---|---|---|---|
| Chemical Polishing Characteristic | Alumite properties | |||||||||
| A995 | O | 85 | 35 | 40 | 9.5 | 2.02 | 62 | 236 | ◎ | ◎ |
| H24 | 120 | 110 | 15 | 6.8 | 2.08 | 61 | 232 | ◎ | ◎ | |
| A505 | H14 | 170 | 150 | 5 | 6.9 | 2.00 | 51 | 194 | ○ | ◎ |
| H34 | 170 | 160 | 6 | 7.0 | 2.04 | 51 | 194 | ○ | ◎ | |
| A52S | O | 200 | 100 | 25 | 8.1 | 2.08 | 35 | 133 | ○ | ◎ |
| H32 | 240 | 200 | 10 | 5.7 | 2.10 | 35 | 133 | ○ | ◎ | |
◎ Excellent, ○ Good △ Acceptable: Treatment condition needs to be considered × Not acceptable

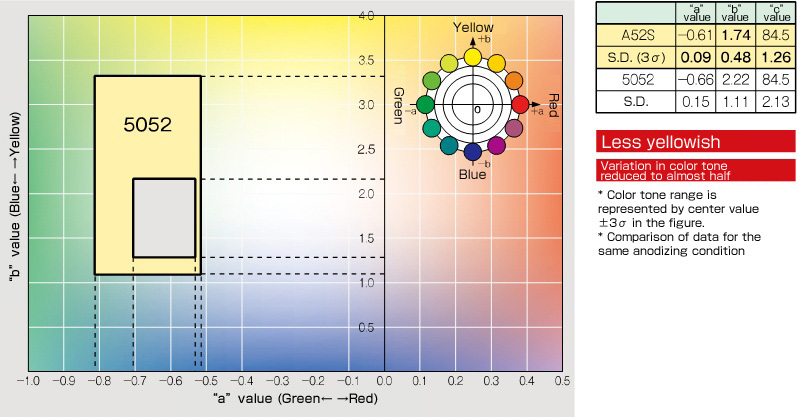

Color Tone Chart of Anodizing Treatment
